Feutre Industrial

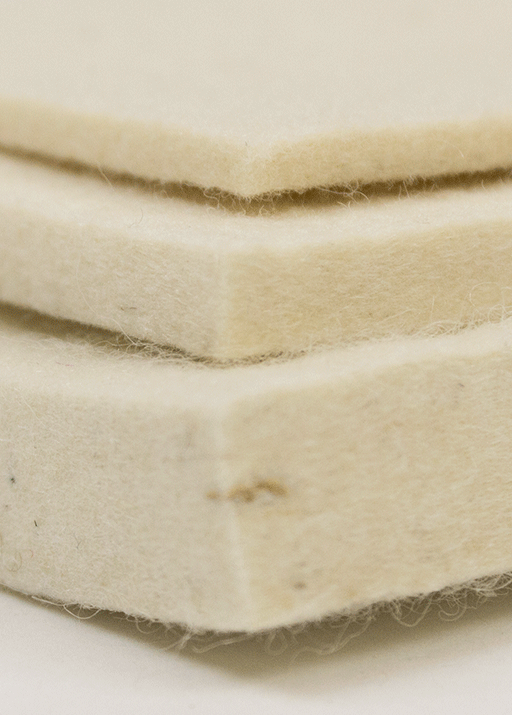

F1 Felt

F1 Felt

Feutre F1 Blanc

USAGES RECOMMANDÉS:

SAE F-1 est adapté à la rétention d'huile dans les installations où le feutre ne sont pas compressées, pour l'alimentation de faible viscosité ou huile légère, et où la force et la dureté inhabituelle sont nécessaires. Rondelles, bagues, les mèches, les butoirs de porte, blocs de polissage, et des pièces où l'usure et la résistance à l'abrasion sont nécessaires, sont des utilisations typiques.

Disponibilités des feutres SAE F-1 caractéristiques, usages, densités et épaisseurs.
AVAILABLE THICKNESS:

From 1/8 inch (3.18mm) to 1 inch (25.4mm)

DENSITY:

Nominal (1"): 16.00 lbs/sq. yd.
Limits: 15.20 - 16.80 lbs/sq. yd

Wool Content

Minimum 95% wool

F1 Minimum wool content: 95%
95% Wool
EPAISSEURS DISPONIBLES:
1/8 INCH (3.18MM)
3/16 INCH (4.76MM)
1/4 INCH (6.35MM)
5/16 INCH (7.94MM)
3/8 INCH (9.53MM)
1/2 INCH (12.7MM)
5/8 INCH (15.88MM)
3/4 INCH (19.05MM)
7/8 INCH (22.23MM)
1 INCH (25.4MM)
DENSITÉ:
F1

Nominale (1”): 16.00 lbs/sq. yd.
Limites: 15.20 - 16.80 lbs/sq. yd.

F3

Nominale (1”): 15.60 lbs/sq. yd.
Limites: 14.41 - 16.79 lbs/sq. yd.

F50

Nominale (1”): 15.60 lbs/sq. yd.
Limites: 14.41 - 16.79 lbs/sq. yd.

F51

Nominale (1”): 15.60 lbs/sq. yd.
Limites: 14.41 - 16.79 lbs/sq. yd.

F5

Nominale (1”): 12.24 lbs/sq. yd.
Limites: 11.60 - 12.88 lbs/sq. yd.

F7

Nominale (1”): 12.24 lbs/sq. yd.
Limites: 11.60 - 12.88 lbs/sq. yd.

F55

Nominale (1”): 12.00 lbs/sq. yd.
Limites: 11.60 - 12.88 lbs/sq. yd.

F10

Nominale (1”): 8.48 lbs/sq. yd.
Limites: 7.84 - 9.12 lbs/sq. yd.

F11

Nominale (1”): 8.48 lbs/sq. yd.
Limites: 7.84 - 9.12 lbs/sq. yd.

F13

Nominale (1”): 8.48 lbs/sq. yd.
Limites: 7.84 - 9.12 lbs/sq. yd.

F15

Nominale (1”): 8.48 lbs/sq. yd.
Limites: 7.84 - 9.12 lbs/sq. yd.

F26

Nominale (1”): 7.20 lbs/sq. yd.
Limites: 6.48 - 7.92 lbs/sq. yd.

F1 Minimum wool content: 95%
95% Wool

F1 White Felt

RECOMMENDED USES:

SAE F-1 is suitable for oil retention in installations where the felt is not compressed, for feeding low viscosity or light oil, and where unusual strength and hardness are required. Washers, bushings, wicks, door bumpers, polishing blocks, and parts where wear and resistance to abrasion are required, are typical uses.

Available SAE F-1 specifications, uses, density and thickness.
AVAILABLE THICKNESS:
1/8 INCH (3.18MM)
3/16 INCH (4.76MM)
1/4 INCH (6.35MM)
5/16 INCH (7.94MM)
3/8 INCH (9.53MM)
1/2 INCH (12.7MM)
5/8 INCH (15.88MM)
3/4 INCH (19.05MM)
7/8 INCH (22.23MM)
1 INCH (25.4MM)
DENSITY:
F1

Nominal (1”): 16.00 lbs/sq. yd.
Limits: 15.20 - 16.80 lbs/sq. yd.

F3

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F50

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F51

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F5

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F7

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F55

Nominal (1”): 12.00 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F10

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F11

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F13

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F15

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F26

Nominal (1”): 7.20 lbs/sq. yd.
Limits: 6.48 - 7.92 lbs/sq. yd.

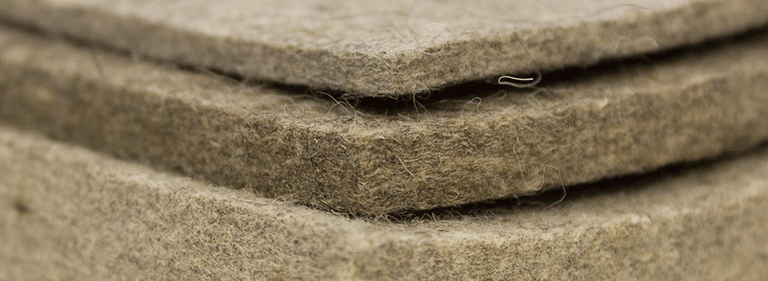

F3 Felt

F3 Felt

Feutre F3 Gris

USAGES RECOMMANDÉS:

SAE F-3 sont recommandés pour les amortisseurs de vibrations et les mêmes fins générales que SAE F-1 et où un feutre de qualité légèrement inférieure est satisfaisante.

Disponibilités des feutres SAE F-3 caractéristiques, usages, densités et épaisseurs.
AVAILABLE THICKNESS:

From 1/8 inch (3.18mm) to 1 inch (25.4mm)

DENSITY:

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

Wool Content

Minimum 85% wool

F3 Minimum wool content: 85%
85% Wool
EPAISSEURS DISPONIBLES:
1/8 INCH (3.18MM)
3/16 INCH (4.76MM)
1/4 INCH (6.35MM)
5/16 INCH (7.94MM)
3/8 INCH (9.53MM)
1/2 INCH (12.7MM)
5/8 INCH (15.88MM)
3/4 INCH (19.05MM)
7/8 INCH (22.23MM)
1 INCH (25.4MM)
DENSITÉ:
F1

Nominal (1”): 16.00 lbs/sq. yd.
Limits: 15.20 - 16.80 lbs/sq. yd.

F3

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F50

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F51

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F5

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F7

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F55

Nominal (1”): 12.00 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F10

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F11

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F13

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F15

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F26

Nominal (1”): 7.20 lbs/sq. yd.
Limits: 6.48 - 7.92 lbs/sq. yd.

F3 Minimum wool content: 85%
85% Wool

F3 Grey Felt

RECOMMENDED USES:

SAE F-3 are recommended for vibration mountings and the same general purposes as SAE F-1 and where a felt of slightly lower quality is satisfactory.

Available SAE F-3 specifications, uses, density and thickness.
AVAILABLE THICKNESS:
1/8 INCH (3.18MM)
3/16 INCH (4.76MM)
1/4 INCH (6.35MM)
5/16 INCH (7.94MM)
3/8 INCH (9.53MM)
1/2 INCH (12.7MM)
5/8 INCH (15.88MM)
3/4 INCH (19.05MM)
7/8 INCH (22.23MM)
1 INCH (25.4MM)
DENSITY:
F1

Nominal (1”): 16.00 lbs/sq. yd.
Limits: 15.20 - 16.80 lbs/sq. yd.

F3

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F50

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F51

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F5

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F7

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F55

Nominal (1”): 12.00 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F10

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F11

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F13

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F15

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F26

Nominal (1”): 7.20 lbs/sq. yd.
Limits: 6.48 - 7.92 lbs/sq. yd.

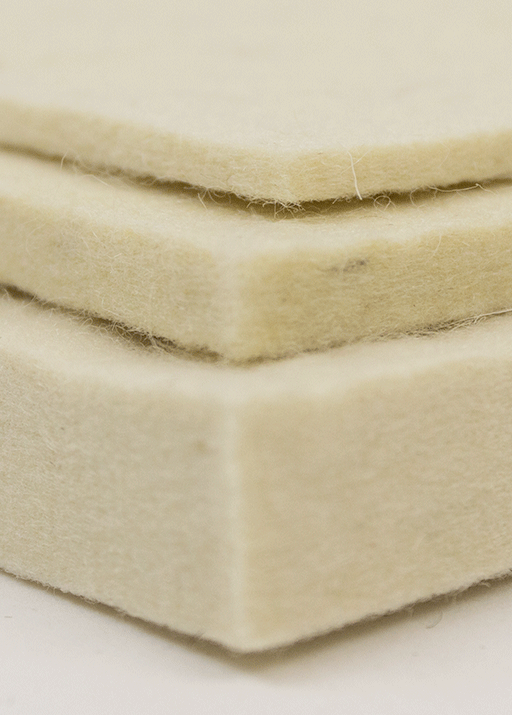

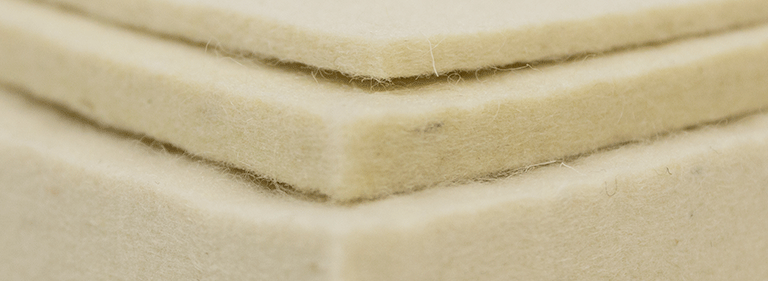

F5 Felt

F5 Felt

Feutre F5 Blanc

USAGES RECOMMANDÉS:

SAE F-5 et F-7 sont recommandés pour les boucliers de la poussière, essuie-glaces, des rondelles de retenue de la graisse, des mèches, amortisseurs de vibrations, et dans les utilisations où un feutre élastique est nécessaire.

Disponibilités des feutres SAE F-5 caractéristiques, usages, densités et épaisseurs.
Disponibilités des feutres SAE F-7 caractéristiques, usages, densités et épaisseurs.

AVAILABLE THICKNESS:

From 1/8 inch (3.18mm) to 1 inch (25.4mm)

DENSITY:

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

Wool Content

Minimum 95% wool

F5 Minimum wool content: 95%
95% Wool
EPAISSEURS DISPONIBLES:
1/8 INCH (3.18MM)
3/16 INCH (4.76MM)
1/4 INCH (6.35MM)
5/16 INCH (7.94MM)
3/8 INCH (9.53MM)
1/2 INCH (12.7MM)
5/8 INCH (15.88MM)
3/4 INCH (19.05MM)
7/8 INCH (22.23MM)
1 INCH (25.4MM)
DENSITÉ:
F1

Nominal (1”): 16.00 lbs/sq. yd.
Limits: 15.20 - 16.80 lbs/sq. yd.

F3

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F50

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F51

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F5

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F7

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F55

Nominal (1”): 12.00 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F10

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F11

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F13

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F15

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F26

Nominal (1”): 7.20 lbs/sq. yd.
Limits: 6.48 - 7.92 lbs/sq. yd.

F5 Minimum wool content: 95%
95% Wool

F5 White Felt

RECOMMENDED USES:

SAE F-5 & F-7 are recommended for dust shields, wipers, grease retainer washers, wicks, vibration mountings, and in uses where a resilient felt is required.

Available SAE F-5 specifications, uses, density and thickness.
Available SAE F-7 specifications, uses, density and thickness.

AVAILABLE THICKNESS:
1/8 INCH (3.18MM)
3/16 INCH (4.76MM)
1/4 INCH (6.35MM)
5/16 INCH (7.94MM)
3/8 INCH (9.53MM)
1/2 INCH (12.7MM)
5/8 INCH (15.88MM)
3/4 INCH (19.05MM)
7/8 INCH (22.23MM)
1 INCH (25.4MM)
DENSITY:
F1

Nominal (1”): 16.00 lbs/sq. yd.
Limits: 15.20 - 16.80 lbs/sq. yd.

F3

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F50

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F51

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F5

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F7

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F55

Nominal (1”): 12.00 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F10

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F11

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F13

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F15

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F26

Nominal (1”): 7.20 lbs/sq. yd.
Limits: 6.48 - 7.92 lbs/sq. yd.

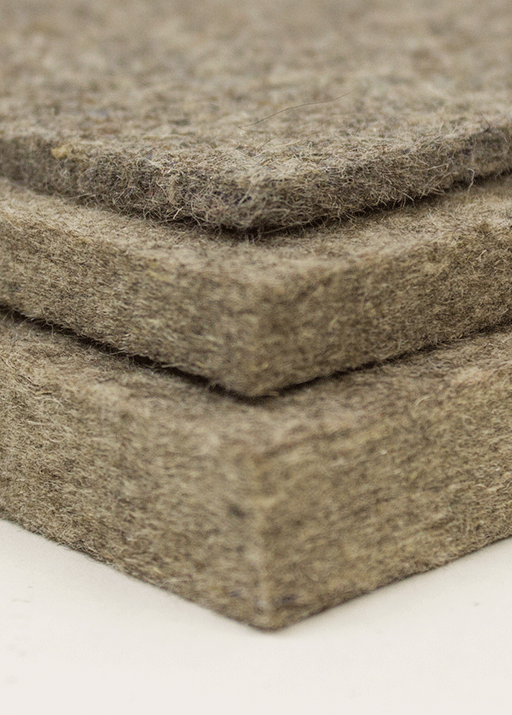

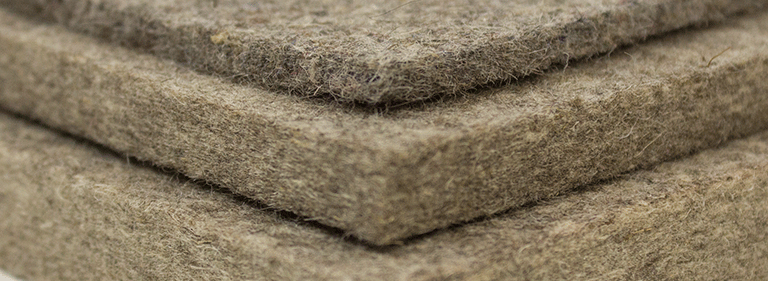

F7 Felt

F7 Felt

Feutre F7 Gris

USAGES RECOMMANDÉS:

SAE F-5 et F-7 sont recommandés pour les boucliers de la poussière, essuie-glaces, des rondelles de retenue de la graisse, des mèches, amortisseurs de vibrations, et dans les utilisations où un feutre élastique est nécessaire.

Disponibilités des feutres SAE F-5 caractéristiques, usages, densités et épaisseurs.
Disponibilités des feutres SAE F-7 caractéristiques, usages, densités et épaisseurs.
AVAILABLE THICKNESS:

From 1/8 inch (3.18mm) to 1 inch (25.4mm)

DENSITY:

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

Wool Content

Minimum 80% wool

F7 Minimum wool content: 80%
80% Wool
EPAISSEURS DISPONIBLES:
1/8 INCH (3.18MM)
3/16 INCH (4.76MM)
1/4 INCH (6.35MM)
5/16 INCH (7.94MM)
3/8 INCH (9.53MM)
1/2 INCH (12.7MM)
5/8 INCH (15.88MM)
3/4 INCH (19.05MM)
7/8 INCH (22.23MM)
1 INCH (25.4MM)
DENSITÉ:
F1

Nominal (1”): 16.00 lbs/sq. yd.
Limits: 15.20 - 16.80 lbs/sq. yd.

F3

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F50

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F51

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F5

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F7

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F55

Nominal (1”): 12.00 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F10

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F11

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F13

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F15

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F26

Nominal (1”): 7.20 lbs/sq. yd.
Limits: 6.48 - 7.92 lbs/sq. yd.

F7 Minimum wool content: 80%
80% Wool

F7 Grey Felt

RECOMMENDED USES:

SAE F-5 & F-7 are recommended for dust shields, wipers, grease retainer washers, wicks, vibration mountings, and in uses where a resilient felt is required.

Available SAE F-5 specifications, uses, density and thickness.
Available SAE F-7 specifications, uses, density and thickness.
AVAILABLE THICKNESS:
1/8 INCH (3.18MM)
3/16 INCH (4.76MM)
1/4 INCH (6.35MM)
5/16 INCH (7.94MM)
3/8 INCH (9.53MM)
1/2 INCH (12.7MM)
5/8 INCH (15.88MM)
3/4 INCH (19.05MM)
7/8 INCH (22.23MM)
1 INCH (25.4MM)
DENSITY:
F1

Nominal (1”): 16.00 lbs/sq. yd. Limits: 15.20 - 16.80 lbs/sq. yd.

F3

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F50

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F51

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F5

Nominal (1”): 12.24 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F7

Nominal (1”): 12.24 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F55

Nominal (1”): 12.00 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F10

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F11

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F13

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F15

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F26

Nominal (1”): 7.20 lbs/sq. yd. Limits: 6.48 - 7.92 lbs/sq. yd.

F10 Felt

F10 Felt

Feutre F10 Blanc

USAGES RECOMMANDÉS:

SAE F-10 et F-11 sont recommandées pour la graisse et la rétention d'huile où le feutre est confiné et comprimé dans l'assemblage. Également recommandé pour les boucliers de la poussière sous conditions de fonctionnement moins sévères où F-5 et F-7 ne sont pas nécessaires.

Disponibilités des feutres SAE F-10 caractéristiques, usages, densités et épaisseurs.
Disponibilités des feutres SAE F-11 caractéristiques, usages, densités et épaisseurs.
AVAILABLE THICKNESS:

From 1/8 inch (3.18mm) to 1 inch (25.4mm)

DENSITY:

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

Wool Content

Minimum 95% wool

F10 Minimum wool content: 95%
95% Wool
EPAISSEURS DISPONIBLES:
1/8 INCH (3.18MM)
3/16 INCH (4.76MM)
1/4 INCH (6.35MM)
5/16 INCH (7.94MM)
3/8 INCH (9.53MM)
1/2 INCH (12.7MM)
5/8 INCH (15.88MM)
3/4 INCH (19.05MM)
7/8 INCH (22.23MM)
1 INCH (25.4MM)
DENSITÉ:
F1

Nominal (1”): 16.00 lbs/sq. yd.
Limits: 15.20 - 16.80 lbs/sq. yd.

F3

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F50

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F51

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F5

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F7

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F55

Nominal (1”): 12.00 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F10

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F11

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F13

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F15

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F26

Nominal (1”): 7.20 lbs/sq. yd.
Limits: 6.48 - 7.92 lbs/sq. yd.

F10 Minimum wool content: 95%
95% Wool

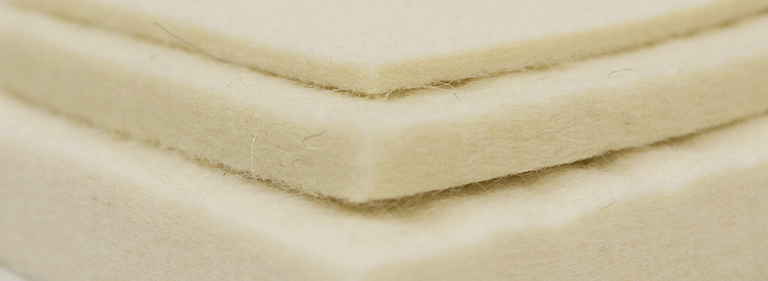

F10 White Felt

RECOMMENDED USES:

SAE F-10 & F-11 are recommended for grease and oil retention where the felt is confined and compressed in assembly. Also recommended for dust shields under less severe operating conditions where F-5 & F-7 are not required.

Available SAE F-10 specifications, uses, density and thickness.
Available SAE F-11 specifications, uses, density and thickness.
AVAILABLE THICKNESS:
1/8 INCH (3.18MM)
3/16 INCH (4.76MM)
1/4 INCH (6.35MM)
5/16 INCH (7.94MM)
3/8 INCH (9.53MM)
1/2 INCH (12.7MM)
5/8 INCH (15.88MM)
3/4 INCH (19.05MM)
7/8 INCH (22.23MM)
1 INCH (25.4MM)
DENSITY:
F1

Nominal (1”): 16.00 lbs/sq. yd. Limits: 15.20 - 16.80 lbs/sq. yd.

F3

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F50

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F51

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F5

Nominal (1”): 12.24 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F7

Nominal (1”): 12.24 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F55

Nominal (1”): 12.00 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F10

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F11

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F13

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F15

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F26

Nominal (1”): 7.20 lbs/sq. yd. Limits: 6.48 - 7.92 lbs/sq. yd.

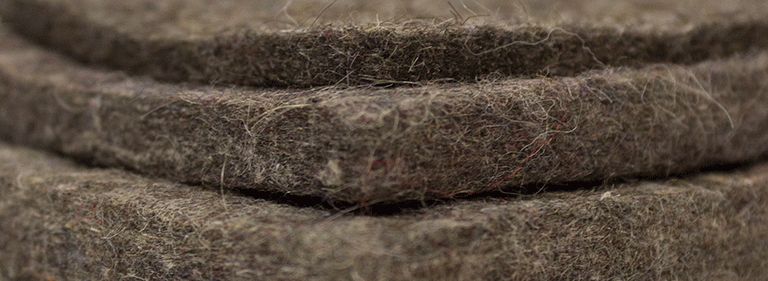

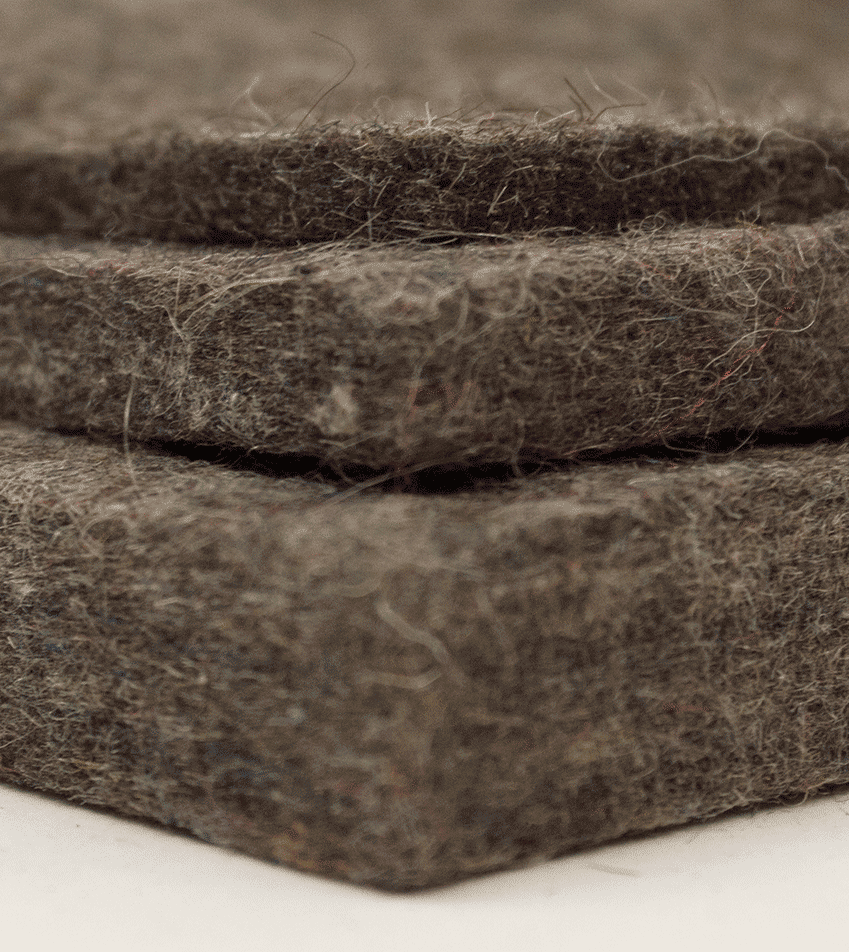

F11 Felt

F11 Felt

Feutre F11 Gris

USAGES RECOMMANDÉS:

SAE F-10 et F-11 sont recommandées pour la graisse et la rétention d'huile où le feutre est confiné et comprimé dans l'assemblage. Également recommandé pour les boucliers de la poussière sous conditions de fonctionnement moins sévères où F-5 et F-7 ne sont pas nécessaires.

Disponibilités des feutres SAE F-10 caractéristiques, usages, densités et épaisseurs.
Disponibilités des feutres SAE F-11 caractéristiques, usages, densités et épaisseurs.
AVAILABLE THICKNESS:

From 1/8 inch (3.18mm) to 1 inch (25.4mm)

DENSITY:

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

Wool Content

Minimum 87% wool

F11 Minimum wool content: 87%
87% Wool
EPAISSEURS DISPONIBLES:
1/8 INCH (3.18MM)
3/16 INCH (4.76MM)
1/4 INCH (6.35MM)
5/16 INCH (7.94MM)
3/8 INCH (9.53MM)
1/2 INCH (12.7MM)
5/8 INCH (15.88MM)
3/4 INCH (19.05MM)
7/8 INCH (22.23MM)
1 INCH (25.4MM)
DENSITÉ:
F1

Nominal (1”): 16.00 lbs/sq. yd.
Limits: 15.20 - 16.80 lbs/sq. yd.

F3

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F50

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F51

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F5

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F7

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F55

Nominal (1”): 12.00 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F10

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F11

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F13

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F15

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F26

Nominal (1”): 7.20 lbs/sq. yd.
Limits: 6.48 - 7.92 lbs/sq. yd.

F11 Minimum wool content: 87%
87% Wool

F11 Grey Felt

RECOMMENDED USES:

SAE F-10 & F-11 are recommended for grease and oil retention where the felt is confined and compressed in assembly. Also recommended for dust shields under less severe operating conditions where F-5 & F-7 are not required.

Available SAE F-10 specifications, uses, density and thickness.
Available SAE F-11 specifications, uses, density and thickness.
AVAILABLE THICKNESS:
1/8 INCH (3.18MM)
3/16 INCH (4.76MM)
1/4 INCH (6.35MM)
5/16 INCH (7.94MM)
3/8 INCH (9.53MM)
1/2 INCH (12.7MM)
5/8 INCH (15.88MM)
3/4 INCH (19.05MM)
7/8 INCH (22.23MM)
1 INCH (25.4MM)
DENSITY:
F1

Nominal (1”): 16.00 lbs/sq. yd. Limits: 15.20 - 16.80 lbs/sq. yd.

F3

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F50

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F51

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F5

Nominal (1”): 12.24 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F7

Nominal (1”): 12.24 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F55

Nominal (1”): 12.00 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F10

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F11

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F13

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F15

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F26

Nominal (1”): 7.20 lbs/sq. yd. Limits: 6.48 - 7.92 lbs/sq. yd.

F13 Felt

F13 Felt

AVAILABLE THICKNESS:

From 1/8 inch (3.18mm) to 1 inch (25.4mm)

DENSITY:

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

Wool Content

Minimum 75% wool

F13 Minimum wool content: 75%
75% Wool
EPAISSEURS DISPONIBLES:
1/8 INCH (3.18MM)
3/16 INCH (4.76MM)
1/4 INCH (6.35MM)
5/16 INCH (7.94MM)
3/8 INCH (9.53MM)
1/2 INCH (12.7MM)
5/8 INCH (15.88MM)
3/4 INCH (19.05MM)
7/8 INCH (22.23MM)
1 INCH (25.4MM)
DENSITÉ:
F1

Nominal (1”): 16.00 lbs/sq. yd.
Limits: 15.20 - 16.80 lbs/sq. yd.

F3

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F50

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F51

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F5

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F7

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F55

Nominal (1”): 12.00 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F10

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F11

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F13

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F15

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F26

Nominal (1”): 7.20 lbs/sq. yd.
Limits: 6.48 - 7.92 lbs/sq. yd.

F13 Minimum wool content: 75%
75% Wool
AVAILABLE THICKNESS:
1/8 INCH (3.18MM)
3/16 INCH (4.76MM)
1/4 INCH (6.35MM)
5/16 INCH (7.94MM)
3/8 INCH (9.53MM)
1/2 INCH (12.7MM)
5/8 INCH (15.88MM)
3/4 INCH (19.05MM)
7/8 INCH (22.23MM)
1 INCH (25.4MM)
DENSITY:
F1

Nominal (1”): 16.00 lbs/sq. yd. Limits: 15.20 - 16.80 lbs/sq. yd.

F3

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F50

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F51

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F5

Nominal (1”): 12.24 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F7

Nominal (1”): 12.24 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F55

Nominal (1”): 12.00 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F10

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F11

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F13

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F15

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F26

Nominal (1”): 7.20 lbs/sq. yd. Limits: 6.48 - 7.92 lbs/sq. yd.

F15 Felt

F15 Felt

Feutre F15 Gris

Feutre F15 disponsible en bleu n/p 125B

USAGES RECOMMANDÉS:

Disponibilités des feutres SAE F-15 caractéristiques, usages, densités et épaisseurs.
AVAILABLE THICKNESS:

From 1/8 inch (3.18mm) to 1 inch (25.4mm)

DENSITY:

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

Wool Content

Minimum 55% wool

F15 Minimum wool content: 55%
55% Wool
EPAISSEURS DISPONIBLES:
1/8 INCH (3.18MM)
3/16 INCH (4.76MM)
1/4 INCH (6.35MM)
5/16 INCH (7.94MM)
3/8 INCH (9.53MM)
1/2 INCH (12.7MM)
5/8 INCH (15.88MM)
3/4 INCH (19.05MM)
7/8 INCH (22.23MM)
1 INCH (25.4MM)
DENSITÉ:
F1

Nominal (1”): 16.00 lbs/sq. yd.
Limits: 15.20 - 16.80 lbs/sq. yd.

F3

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F50

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F51

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F5

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F7

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F55

Nominal (1”): 12.00 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F10

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F11

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F13

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F15

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F26

Nominal (1”): 7.20 lbs/sq. yd.
Limits: 6.48 - 7.92 lbs/sq. yd.

F15 Minimum wool content: 55%
55% Wool

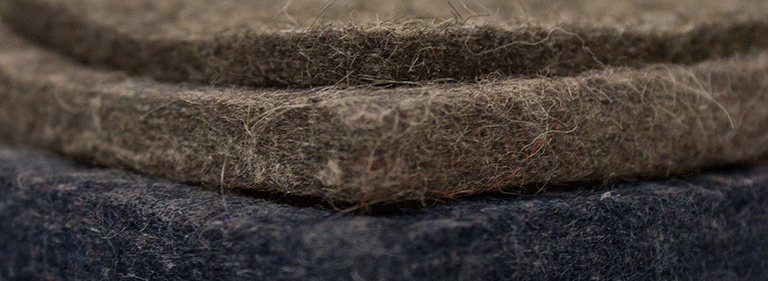

F15 Grey Felt

Feutre F15 disponible en bleu n/p 125B

RECOMMENDED USES:

Available SAE F-15 specifications, uses, density and thickness.
AVAILABLE THICKNESS:
1/8 INCH (3.18MM)
3/16 INCH (4.76MM)
1/4 INCH (6.35MM)
5/16 INCH (7.94MM)
3/8 INCH (9.53MM)
1/2 INCH (12.7MM)
5/8 INCH (15.88MM)
3/4 INCH (19.05MM)
7/8 INCH (22.23MM)
1 INCH (25.4MM)
DENSITY:
F1

Nominal (1”): 16.00 lbs/sq. yd. Limits: 15.20 - 16.80 lbs/sq. yd.

F3

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F50

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F51

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F5

Nominal (1”): 12.24 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F7

Nominal (1”): 12.24 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F55

Nominal (1”): 12.00 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F10

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F11

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F13

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F15

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F26

Nominal (1”): 7.20 lbs/sq. yd. Limits: 6.48 - 7.92 lbs/sq. yd.

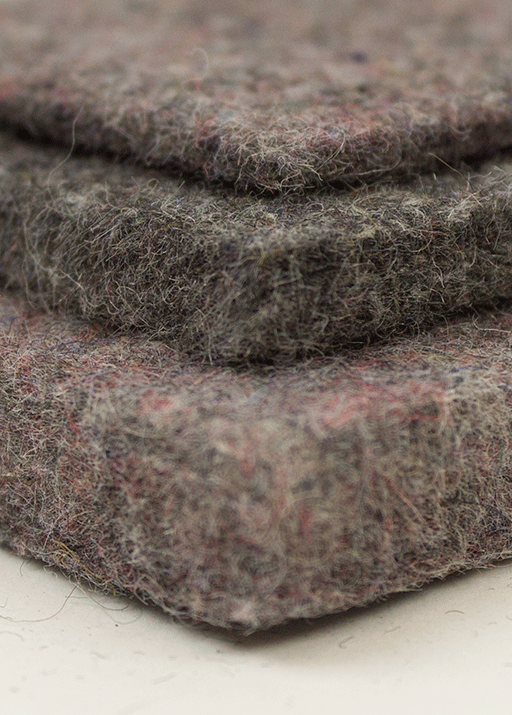

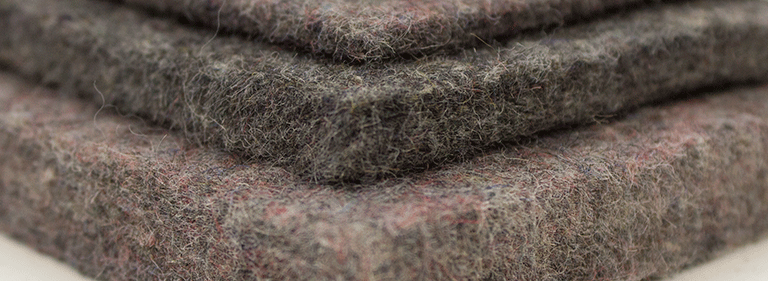

F26 Felt

F26 Felt

Feutre F26 Gris

USAGES RECOMMANDÉS:

Utilisations finales: rembourrage doux et l'emballage en feutre.

Disponibilités des feutres SAE F-26 caractéristiques, usages, densités et épaisseurs.
AVAILABLE THICKNESS:

From 1/8 inch (3.18mm) to 1 inch (25.4mm)

DENSITY:

Nominal (1”): 7.20 lbs/sq. yd.
Limits: 6.48 - 7.92 lbs/sq. yd.

Wool Content

Minimum 45% wool

F26 Minimum wool content: 45%
45% Wool
EPAISSEURS DISPONIBLES:
1/8 INCH (3.18MM)
1/4 INCH (6.35MM)
3/8 INCH (9.53MM)
1/2 INCH (12.7MM)
3/4 INCH (19.05MM)
1 INCH (25.4MM)
DENSITÉ:
F1

Nominal (1”): 16.00 lbs/sq. yd.
Limits: 15.20 - 16.80 lbs/sq. yd.

F3

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F50

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F51

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F5

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F7

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F55

Nominal (1”): 12.00 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F10

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F11

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F13

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F15

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F26

Nominal (1”): 7.20 lbs/sq. yd.
Limits: 6.48 - 7.92 lbs/sq. yd.

F26 Minimum wool content: 45%
45% Wool

F26 Grey Felt

RECOMMENDED USES:

End uses: soft padding and packing felt.

Available SAE F-26 specifications, uses, density and thickness.
AVAILABLE THICKNESS:
1/8 INCH (3.18MM)
3/16 INCH (4.76MM)
1/4 INCH (6.35MM)
5/16 INCH (7.94MM)
3/8 INCH (9.53MM)
1/2 INCH (12.7MM)
5/8 INCH (15.88MM)
3/4 INCH (19.05MM)
7/8 INCH (22.23MM)
1 INCH (25.4MM)
DENSITY:
F1

Nominal (1”): 16.00 lbs/sq. yd. Limits: 15.20 - 16.80 lbs/sq. yd.

F3

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F50

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F51

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F5

Nominal (1”): 12.24 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F7

Nominal (1”): 12.24 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F55

Nominal (1”): 12.00 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F10

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F11

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F13

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F15

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F26

Nominal (1”): 7.20 lbs/sq. yd. Limits: 6.48 - 7.92 lbs/sq. yd.

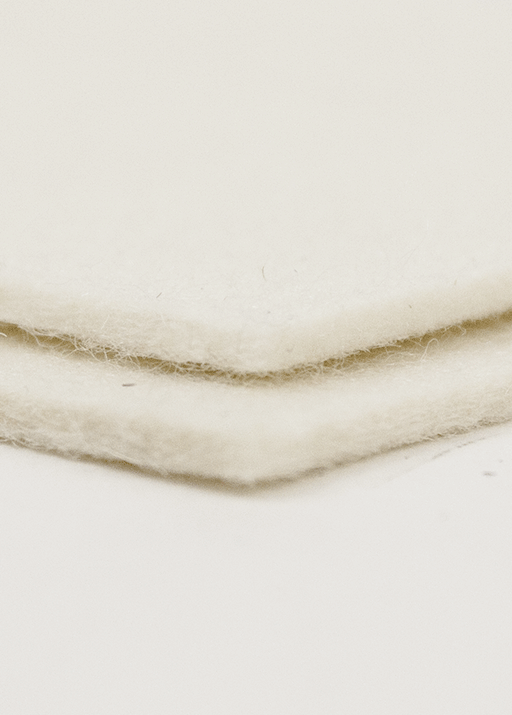

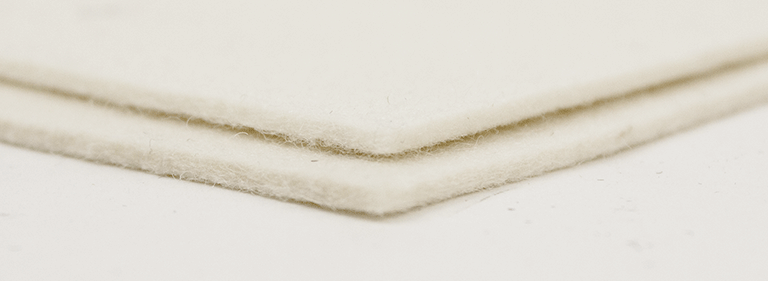

F50 Felt

F50 Felt

Feutre F50 Blanc

USAGES RECOMMANDÉS:

Ce sont des feutres fermes semblables à F1 et F3, sauf l'épaisseur est de 3/32" ou moins..

Disponibilités des feutres SAE F-50 caractéristiques, usages, densités et épaisseurs.

AVAILABLE THICKNESS:

From 1/16 inch (1.59mm) to 3/32 inch (2.38mm)

DENSITY:

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd..

Wool Content

Minimum 95% wool

F50 Minimum wool content: 95%
95% Wool
EPAISSEURS DISPONIBLES:
1/16 DE POUCE (1.59MM)
5/64 DE POUCE (1.98MM)
3/32 DE POUCE (2.38MM)
DENSITÉ:
F1

Nominal (1”): 16.00 lbs/sq. yd.
Limits: 15.20 - 16.80 lbs/sq. yd.

F3

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F50

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F51

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F5

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F7

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F55

Nominal (1”): 12.00 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F10

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F11

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F13

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F15

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F26

Nominal (1”): 7.20 lbs/sq. yd.
Limits: 6.48 - 7.92 lbs/sq. yd.

F50 Minimum wool content: 95%
95% Wool

F50 White Felt

RECOMMENDED USES:

These are firm felts similar to F1 and F3 except the thickness is 3/32" or less.

Available SAE F-50 specifications, uses, density and thickness.

AVAILABLE THICKNESS:
1/8 INCH (3.18MM)
3/16 INCH (4.76MM)
1/4 INCH (6.35MM)
5/16 INCH (7.94MM)
3/8 INCH (9.53MM)
1/2 INCH (12.7MM)
5/8 INCH (15.88MM)
3/4 INCH (19.05MM)
7/8 INCH (22.23MM)
1 INCH (25.4MM)
DENSITY:
F1

Nominal (1”): 16.00 lbs/sq. yd. Limits: 15.20 - 16.80 lbs/sq. yd.

F3

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F50

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F51

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F5

Nominal (1”): 12.24 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F7

Nominal (1”): 12.24 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F55

Nominal (1”): 12.00 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F10

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F11

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F13

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F15

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F26

Nominal (1”): 7.20 lbs/sq. yd. Limits: 6.48 - 7.92 lbs/sq. yd.

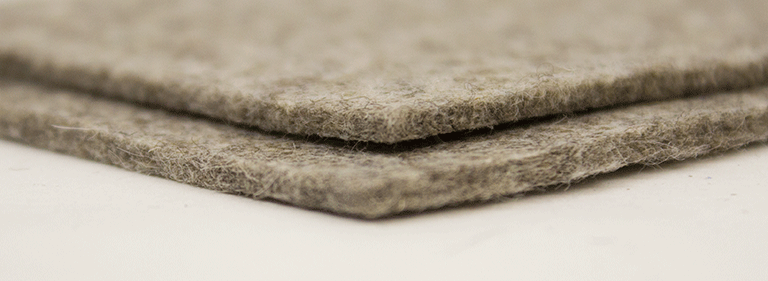

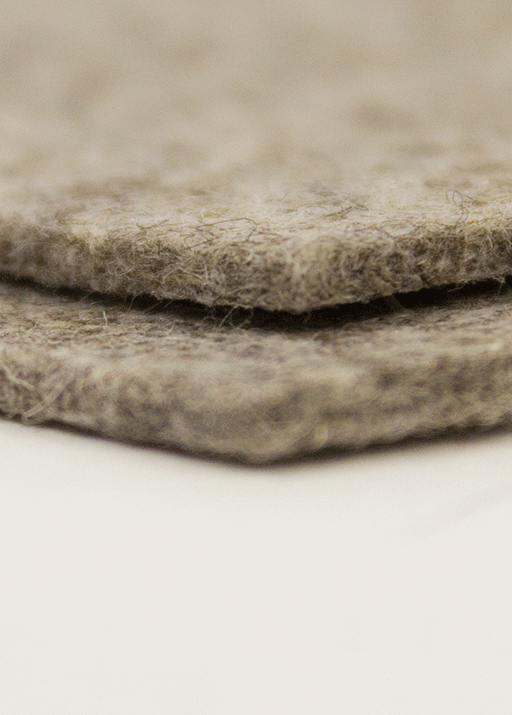

F51 Felt

F51 Felt

Feutre F51 Gris

USAGES RECOMMANDÉS:

Ce sont des feutres fermes semblables à F1 et F3, sauf l'épaisseur est de 3/32" ou moins.

Disponibilités des feutres SAE F-51 caractéristiques, usages, densités et épaisseurs.
AVAILABLE THICKNESS:

From 3/64 inch (1.19mm) to 3/32 inch (2.38mm)

DENSITY:

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd..

Wool Content

Minimum 92% wool

F51 Minimum wool content: 92%
92% Wool
EPAISSEURS DISPONIBLES:
3/64 DE POUCE (1.19MM)
1/16 DE POUCE (2.38MM)
5/64 DE POUCE (1.59MM))
3/32 DE POUCE (2.38MM)
DENSITÉ:
F1

Nominal (1”): 16.00 lbs/sq. yd.
Limits: 15.20 - 16.80 lbs/sq. yd.

F3

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F50

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F51

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F5

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F7

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F55

Nominal (1”): 12.00 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F10

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F11

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F13

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F15

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F26

Nominal (1”): 7.20 lbs/sq. yd.
Limits: 6.48 - 7.92 lbs/sq. yd.

F51 Minimum wool content: 92%
92% Wool

F51 Grey Felt

RECOMMENDED USES:

These are firm felts similar to F1 and F3 except the thickness is 3/32" or less.

Available SAE F-51 specifications, uses, density and thickness.
AVAILABLE THICKNESS:
1/8 INCH (3.18MM)
3/16 INCH (4.76MM)
1/4 INCH (6.35MM)
5/16 INCH (7.94MM)
3/8 INCH (9.53MM)
1/2 INCH (12.7MM)
5/8 INCH (15.88MM)
3/4 INCH (19.05MM)
7/8 INCH (22.23MM)
1 INCH (25.4MM)
DENSITY:
F1

Nominal (1”): 16.00 lbs/sq. yd. Limits: 15.20 - 16.80 lbs/sq. yd.

F3

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F50

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F51

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F5

Nominal (1”): 12.24 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F7

Nominal (1”): 12.24 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F55

Nominal (1”): 12.00 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F10

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F11

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F13

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F15

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F26

Nominal (1”): 7.20 lbs/sq. yd. Limits: 6.48 - 7.92 lbs/sq. yd.

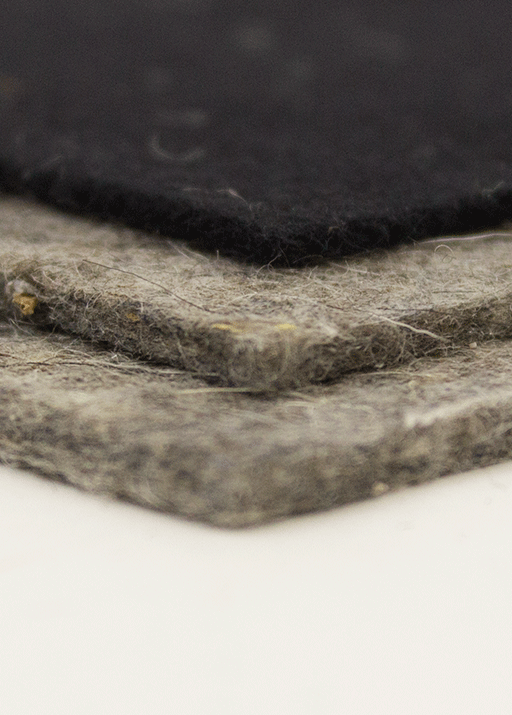

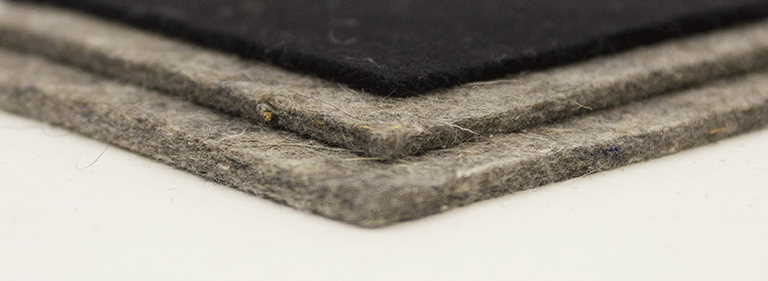

F55 Felt

F55 Felt

Feutre F55 Gris

USAGES RECOMMANDÉS:

Similaire à F7, mais l'épaisseur est moins que 1/8". Utilisé pour assourdissement et les applications anti-grincement.

Disponibilités des feutres SAE F-55 caractéristiques, usages, densités et épaisseurs.

AVAILABLE THICKNESS:

From 3/64 inch (1.19mm) to 3/32 inch (2.38mm)

DENSITY:

Nominal (1”): 12.00 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

Wool Content

Minimum 75% wool

F55 Minimum wool content: 75%
75% Wool
EPAISSEURS DISPONIBLES:
1/16 DE POUCE (1.59MM))
3/12 DE POUCE (2.38MM)
DENSITÉ:
F1

Nominal (1”): 16.00 lbs/sq. yd.
Limits: 15.20 - 16.80 lbs/sq. yd.

F3

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F50

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F51

Nominal (1”): 15.60 lbs/sq. yd.
Limits: 14.41 - 16.79 lbs/sq. yd.

F5

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F7

Nominal (1”): 12.24 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F55

Nominal (1”): 12.00 lbs/sq. yd.
Limits: 11.60 - 12.88 lbs/sq. yd.

F10

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F11

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F13

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F15

Nominal (1”): 8.48 lbs/sq. yd.
Limits: 7.84 - 9.12 lbs/sq. yd.

F26

Nominal (1”): 7.20 lbs/sq. yd.
Limits: 6.48 - 7.92 lbs/sq. yd.

F55 Minimum wool content: 75%
75% Wool

F55 Grey Felt

RECOMMENDED USES:

Similar to F7 but thickness is less than 1/8". Used for sound deadening and anti squeak applications.

Available SAE F-55 specifications, uses, density and thickness.

AVAILABLE THICKNESS:
1/8 INCH (3.18MM)
3/16 INCH (4.76MM)
1/4 INCH (6.35MM)
5/16 INCH (7.94MM)
3/8 INCH (9.53MM)
1/2 INCH (12.7MM)
5/8 INCH (15.88MM)
3/4 INCH (19.05MM)
7/8 INCH (22.23MM)
1 INCH (25.4MM)
DENSITY:
F1

Nominal (1”): 16.00 lbs/sq. yd. Limits: 15.20 - 16.80 lbs/sq. yd.

F3

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F50

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F51

Nominal (1”): 15.60 lbs/sq. yd. Limits: 14.41 - 16.79 lbs/sq. yd.

F5

Nominal (1”): 12.24 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F7

Nominal (1”): 12.24 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F55

Nominal (1”): 12.00 lbs/sq. yd. Limits: 11.60 - 12.88 lbs/sq. yd.

F10

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F11

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F13

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F15

Nominal (1”): 8.48 lbs/sq. yd. Limits: 7.84 - 9.12 lbs/sq. yd.

F26

Nominal (1”): 7.20 lbs/sq. yd. Limits: 6.48 - 7.92 lbs/sq. yd.

[icon name=”shopping-cart” class=”glyphicon” unprefixed_class=”shop”]

© Multifeutre du Québec Ltée, déposé en 2018. Tous droits réservé.
